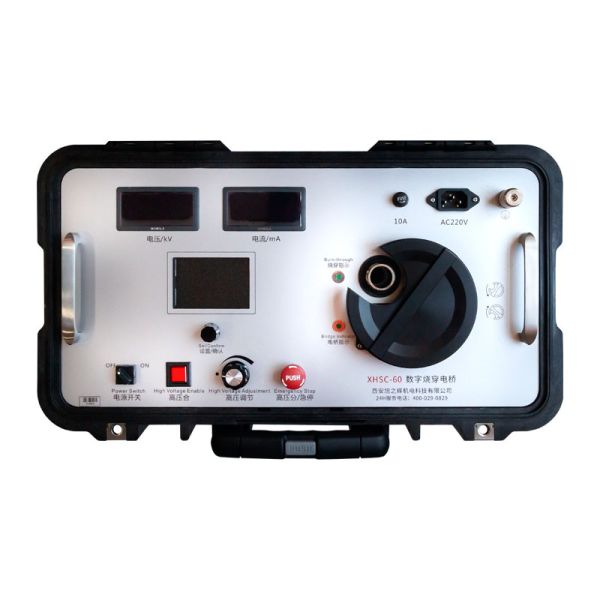

Digital Burn Through Bridge for Cable Fault Location in High Voltage Large Section Cables

Name: Digital Burn Through Bridge for Cable Fault Location in High Voltage Large Section Cables
Brand: XZH TEST
Price: 1 USD

China Digital Burn Through Bridge for Cable Fault Location in High Voltage Large Section Cables wholesale

Brand Name : XZH TEST

Model Number : XHSC-60Q

Certification : CE

Place of Origin : Shaanxi

MOQ : 1unit

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100 unit per month

Packaging Details : wooden packaging

Delivery Time : 5-8work days

Power : 2kVA,Generator power supply (greater than 2kW)

Dimensions (L× W × H) : 30cm*46cm*50cm

Operating temperature : -10℃～+55℃

Contact Now

Products Description

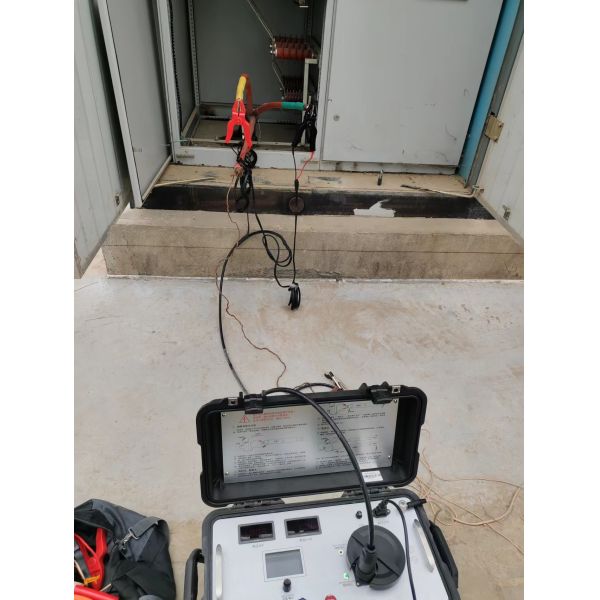

Cable fault location intelligent bridge, set burn through and intelligent bridge in one. Rated voltage in burn mode is 60kV, short circuit current is 600mA, which can quickly burn high resistance fault to low resistance. The rated working current of intelligent bridge is 600mA, which greatly improves the accuracy of fault location. It is especially suitable for the insulation fault location of high voltage, large section and long complex cable system, such as the insulation fault location of complex high voltage cable with GIS terminal and cross interconnection. The location can be completed quickly without removing the GIS switch and short circuit cross interconnection.

The intelligent cable fault location bridge can be used to locate all cable insulation and sheath faults except some short line faults.

Digital Burn Through Bridge for Cable Fault Location in High Voltage Large Section Cables

Features

*The equipment adopts switching power supply to form high voltage constant current source, high voltage and stable current.

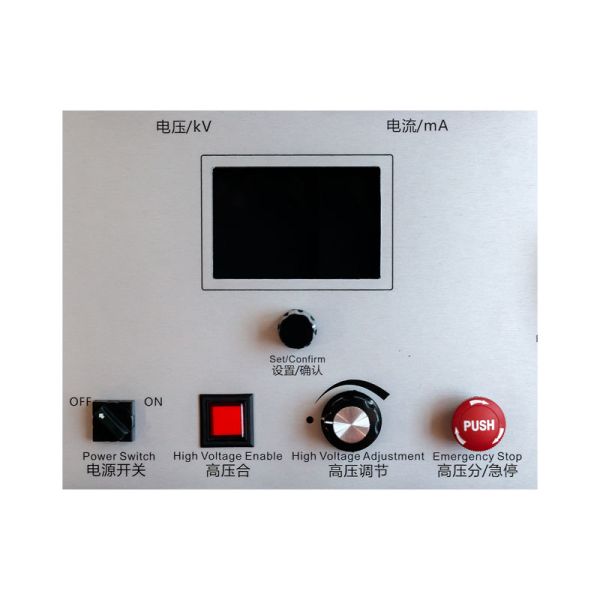

*The bridge detection module is integrated with a large LCD screen display at high potential. The operating button on the panel is at ground potential and the bridge is operated through the insulation rod.

*The special custom-made four-core high-voltage measuring cable with shield, the copper mesh braided shield layer is reliably grounded and safe to use. The four - end resistance measurement method avoids the error of lead resistance.

*The high voltage constant current source and bridge are integrated in a portable pull rod plastic box. High voltage, light weight, easy to operate.

*The bridge method has no blind spot compared with the wave reflection method, and is especially suitable for determining the breakdown points of short cables and near the ends.

*High voltage and high current are especially suitable for the fault locating of insulation and sheath of complex high-voltage cable systems with large length and large section.

Main function parameters

Burn through mode	The output voltage	0～60kV Continuous adjustable
Burn through mode	Short circuit current	600mA
A bridge model	The output voltage	0～4kV Continuous adjustable
	Short circuit current	600mA
	LCD The display screen	3.5 inch TFT Color screen
	Positioning accuracy	±(0.2%·L+1)m
	Test range	1～50000m
	Operating keyboard	One key operation
The power supply	220V AC±10%,50Hz
Power	2kVA,Generator power supply (greater than 2kW)
Dimensions (L× W × H)	30cm46cm50cm
Operating temperature	-10℃～+55℃
